Description

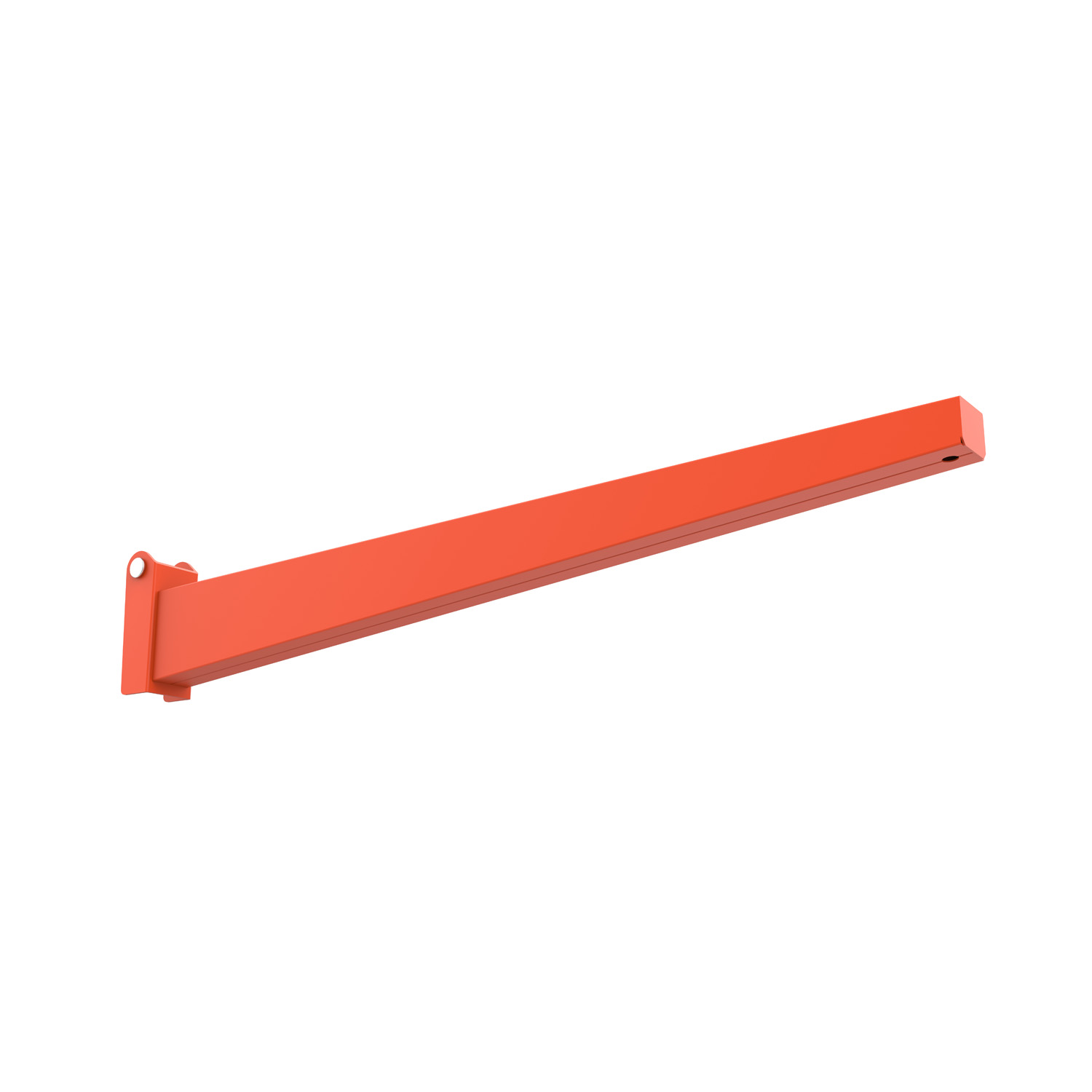

The arm is the part that carries the load. It hooks onto the face of a heavy duty cantilever column and locks with a safety pin, so it can be moved up or down the column as your stock changes. This one reaches 1500 mm out from the column and is rated at 1000kg per arm.
Specification
- Loading Capacity: 1000kg
- Dimension: 1500 mm x 100 mm x 120 mm
- Safety Pin Included
- Stop pin not included – optional, sold separately
- Powder coated finish
Reading the load rating
- 1000kg is the rating for one arm, evenly spread along its length. The column and the base have their own limits, so a bay total is not simply the arm rating multiplied out – tell us the whole load and we will confirm the column.
- Load arms in matching pairs across the bay, and keep the heaviest stock on the lowest arms.
- A stop pin is optional and sold separately – worth it for anything that can roll.
What else the bay needs
- Heavy duty columns, a base under each, and a bracing set between every pair.
- Arms are ordered per face: a double-sided run needs them on both sides.
Tell us what you are storing – length, weight and how much of it – and we will spec the arms and the run with you. Call 1300 884 482.
