Description

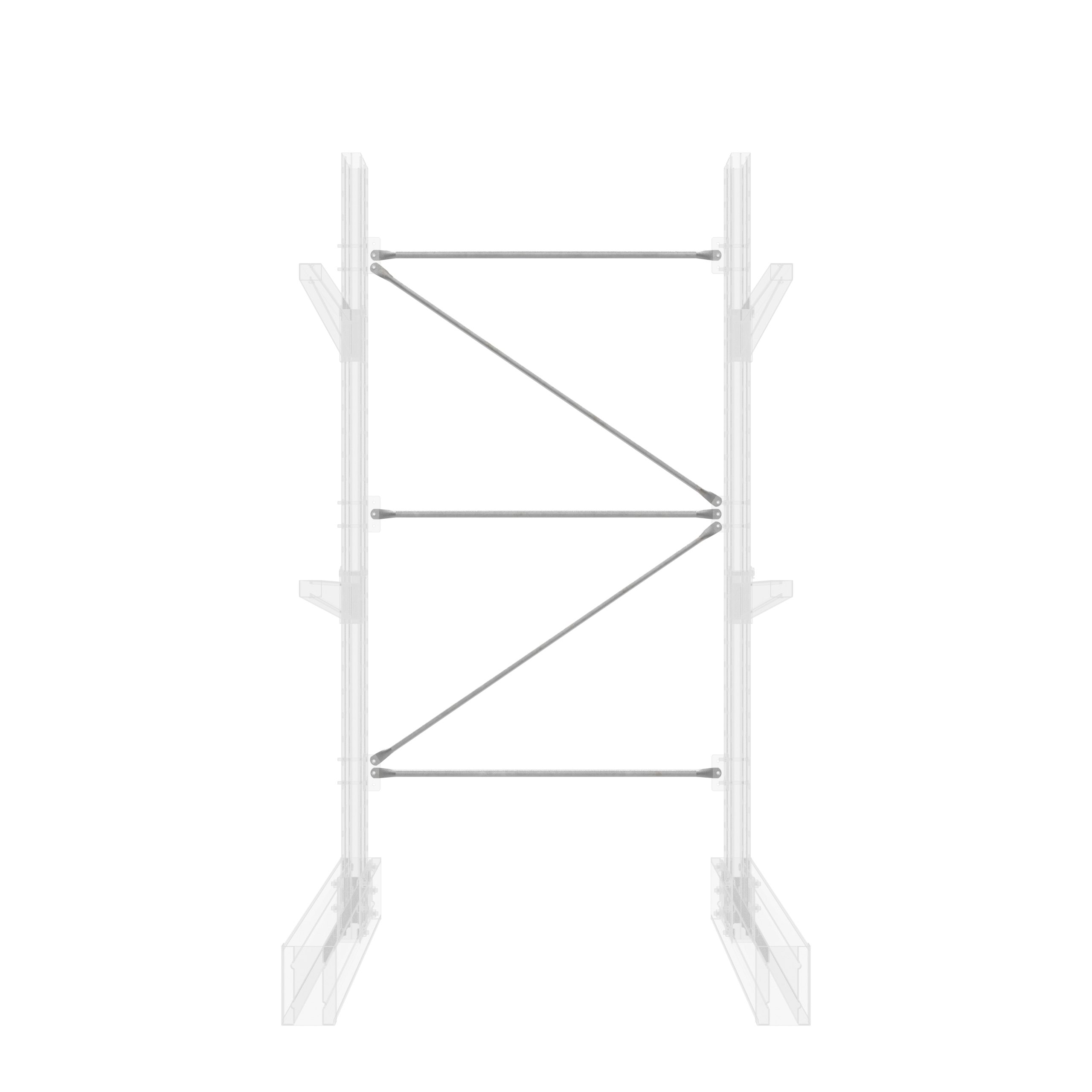

Bracing is what turns a line of cantilever columns into one rigid structure. This set braces a single bay between two heavy duty columns standing at 1800 mm centres, and is cut for the 3630 mm column. Without it the columns are free to rack sideways under an uneven load, so a run is braced between every pair.
In this set
- 3 x Horizontal Bracing
- 2 x Diagonal Bracing
- Hot-dip galvanised finish
- Nuts, bolts and locking pins are supplied with every cantilever order
What it goes with
- Two heavy duty cantilever columns at 3630 mm, set 1800 mm apart.
- A base under each column, and arms on whichever faces you are loading.
- One set per bay: a three-bay run takes four columns and three sets.
Not sure how many bays your load needs? Tell us the length and weight of what you are storing and we will work the run out with you – call 1300 884 482.
