Description

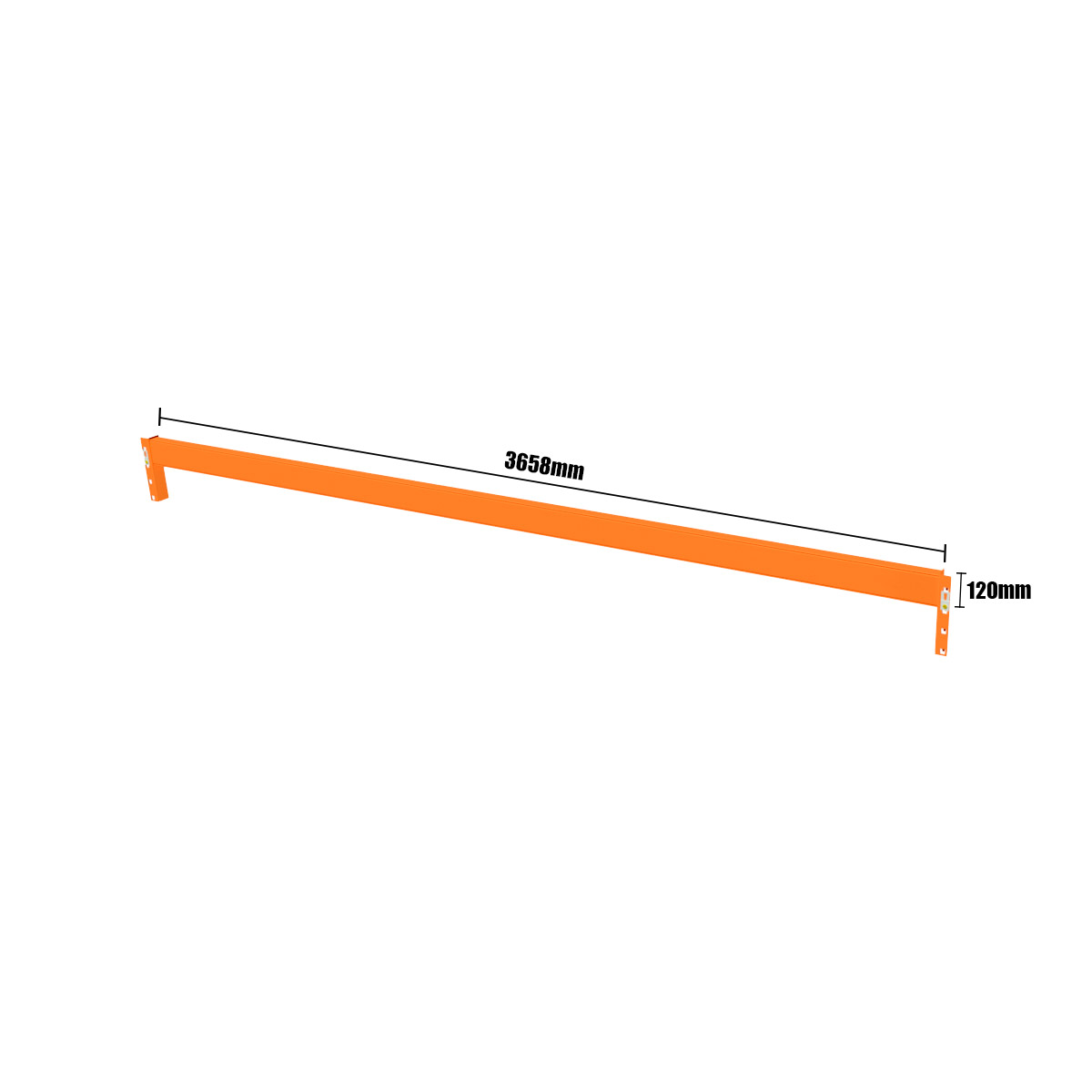

A pallet racking beam 3658 mm long, 120 mm x 50 mm x 1.5 mm section. Beams are sold individually and a beam level takes two – one at the front of the bay and one at the back – so order in pairs per level, per bay.
Specification
- Length : 3658mm
- Dimension : 120mm x 50mm x 1.5mm
- Max Load Per Pair: 2220kg
- Anti-rust and durable
- Heavy Duty
- Brand new
- Sold individually
Reading the load rating
- 2220 kg is the maximum for the pair, not for one beam – two beams carrying one level between them.
- It assumes the load is spread evenly along the beams, on a matched pair of the same length and section.
- The frame, the bracing and the floor have their own limits. A bay is only as strong as the weakest of them, so confirm the figure against your configuration before you design to it.
- Never mix beam sections in one level, and never load a level that is missing a safety clip.
What it goes with
- Two uprights per bay, chosen for the height you need and the depth of your pallets.
- Two beams per level, per bay. A four-level bay takes eight beams.
- Adding to an existing rack? Beam connectors are not universal between manufacturers – send us a photo of your upright and we will confirm the beam suits it before you order.
Tell us your pallet size, weight and how high you want to go and we will work the bay out with you – call 1300 884 482, or see the beam and frame chart in the technical library.
