Description

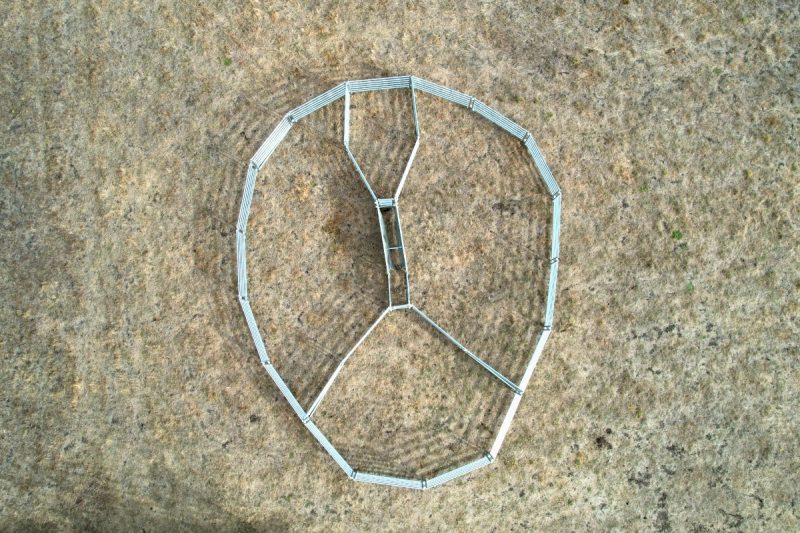

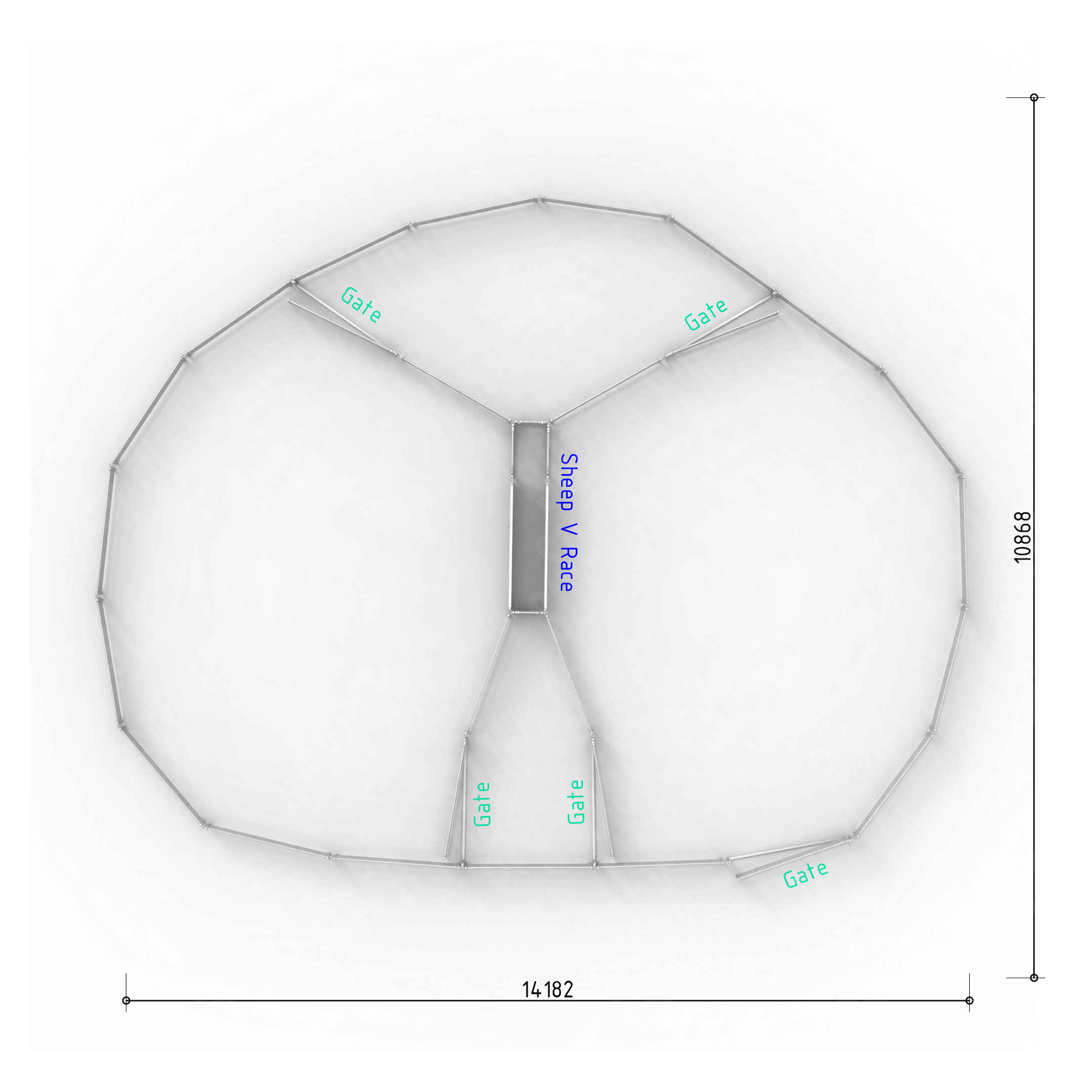

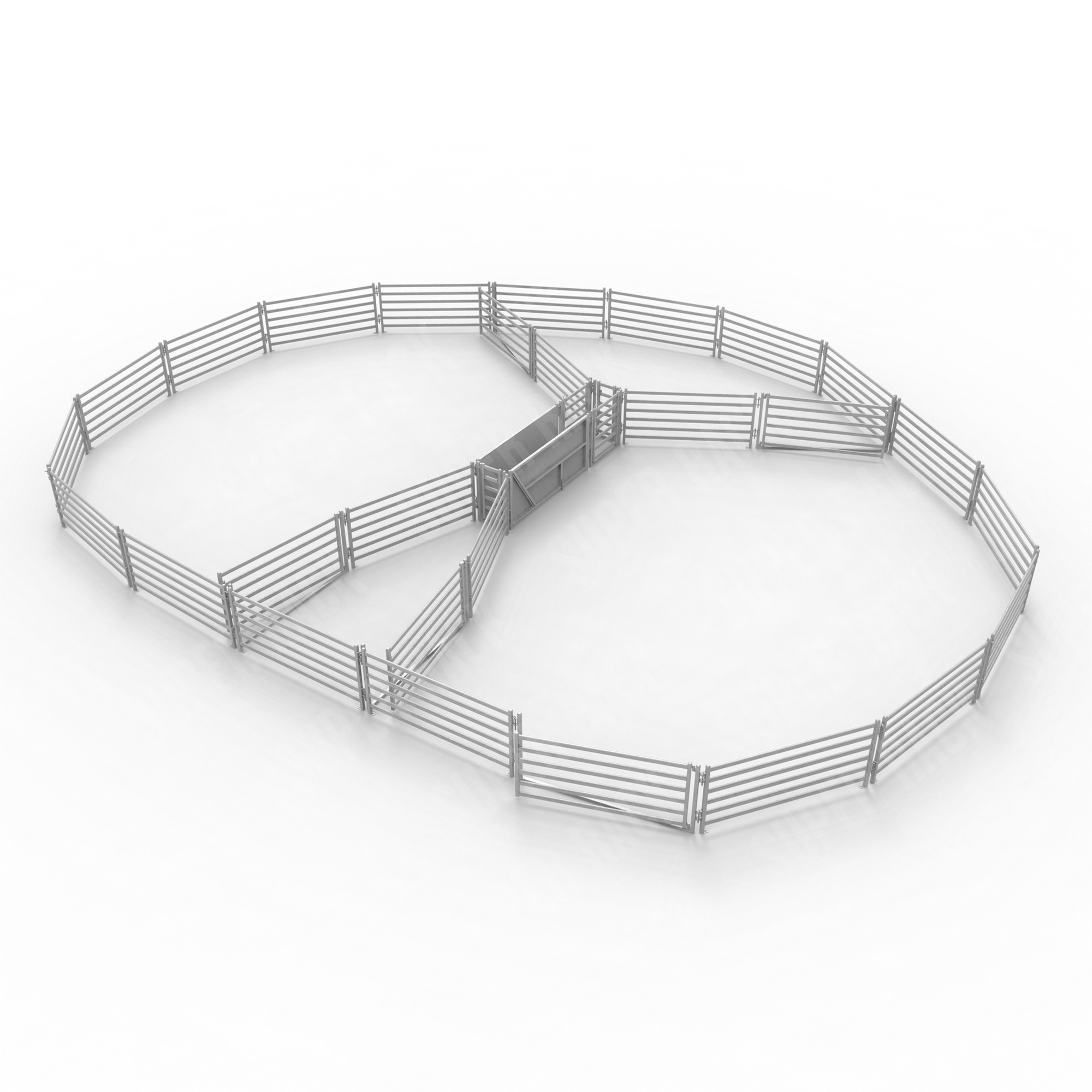

A complete sheep yard for 200 head, supplied as a kit. The layout is already worked out for a mob that size, so you order one plan rather than counting panels yourself – 28 pieces in all, 22 panels and 5 gates among them.
What is in the kit
- 22 x “1m x 2.07m Sheep Panel”
- 5 x “1m x 2m Sheep Gate”
- 1 x “Sheep V Race”
How the pieces work together
- Panels make the fence line and the holding pens. They pin to one another, so the yard stands on its own – no posts, no concrete – and it can be moved or extended later.
- Gates split the yard into pens and let you move a mob forward a group at a time. This plan has 5 of them.
- The V race is 1m high and 3.42m long, sheeted along the sides, and comes with its own four small gates.
Panel and gate specification
- Fully 360 degree welded, galvanised steel with the welds painted
- Vertical tubes : 40 x 40 x 1.6mm
- Horizontal rails : 6 rails, 30 x 60 x 1.6mm oval
- Fittings : 2 caps, 2 L lugs and 2 U lugs at 80 x 60 x 6mm
- Pins hang on the lugs, so nothing is loose on the ground
Every yard here is a standard plan. If your ground, your shed or the way you work does not suit one of them, tell our sales team the mob size and what you need to do with them and they will lay out a yard to fit.
