Description

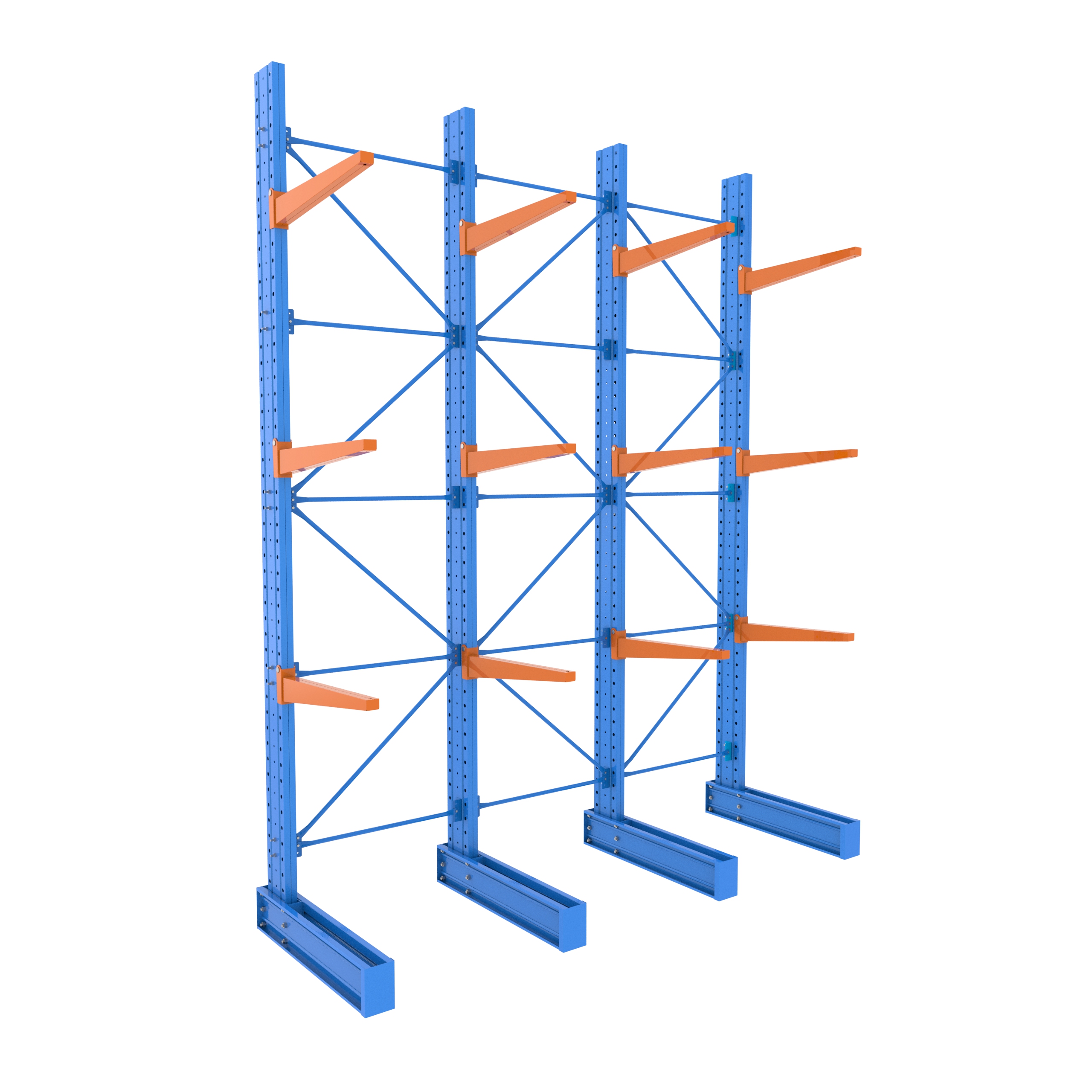

A complete 3-bay single-sided heavy duty cantilever run, powder coated for indoor use. Everything in the list below arrives together – posts, bases, bracing and arms – so there is nothing to work out and nothing left to order. The posts stand 5940 mm tall, and the finished run measures 5940mm high x 4700mm long x 1590mm deep.
What is in the package
- 4 x 5940mm Posts
- 4 x 1630mm Single Bases
- 3 x 1500cc Bracing Sets
- 12 x 1200mm Arms
- All nuts, bolts and locking pins
Reading the load rating
- 4000KG per level, per side – spread evenly across the arms on that level, not concentrated at the arm tips.
- 3950KG per post, per side – the total the whole column will carry down through the base.
- Both figures assume the run is bolted to a sound slab, plumb, and braced as supplied.
- Fill in the load sign with these figures once the run is up, and have them re-checked if you ever change the arm spacing.
Before you order
- Bases bolt to the floor – you will need a slab in reasonable condition and anchors to suit it.
- Single sided, so it is designed to stand against a wall and be loaded from one face.
- Arms can be moved up and down the post later as your stock changes.
- Need a different length, height or bay count? We supply every part separately and can quote the run to suit.
Tell us the length and weight of what you are storing and we will confirm this is the right run before you buy – call 1300 884 482.
