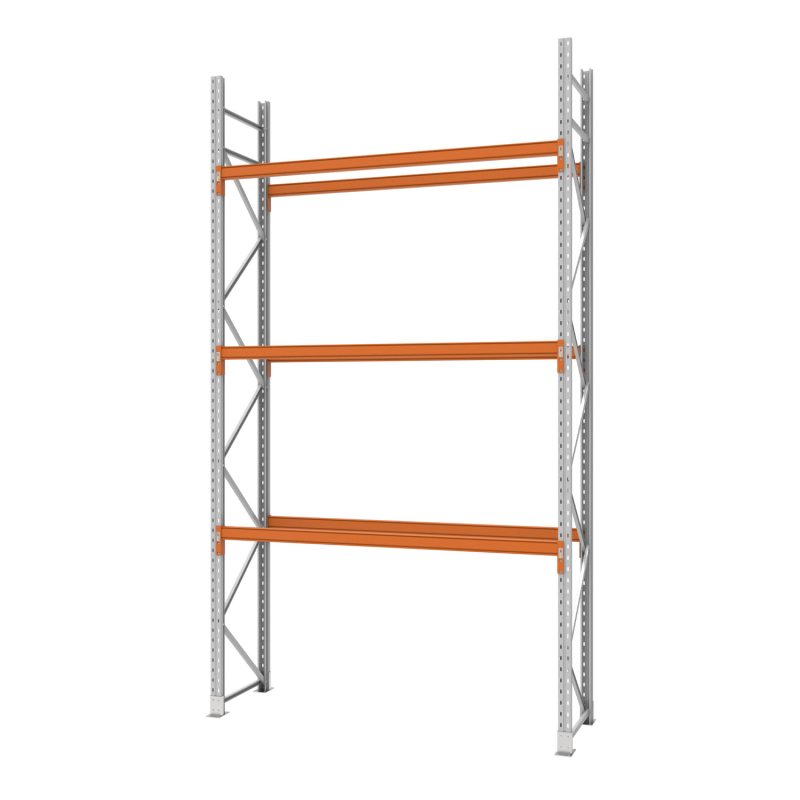

4877 Height Pallet Racking

Description

– Upright Height: 4877mm
– Upright Depth: 838mm / 1219mm
– Beam Length: 2591mm x 100mm / 2743mm x 100mm / 2591mm x 120mm / 2743mm x 120mm / 3048mm x 120mm / 3658mm x 120mm / 3810mm x 140mm
– AS 4084-2012 Compliant
– Adjustable Height Between Levels

Max Loading Rate Per Pair:

2591mm x 100mm : 2310kg
2743mm x 100mm : 2180kg
2591mm x 120mm : 3010kg
2743mm x 120mm : 2845kg
3048mm x 120mm : 2555kg
3658mm x 120mm : 2115kg
3810mm x 140mm : 2750kg

Package includes
– All bracing, foot plates, nuts and bolts
– 1 Safety Loading Sign
