Description

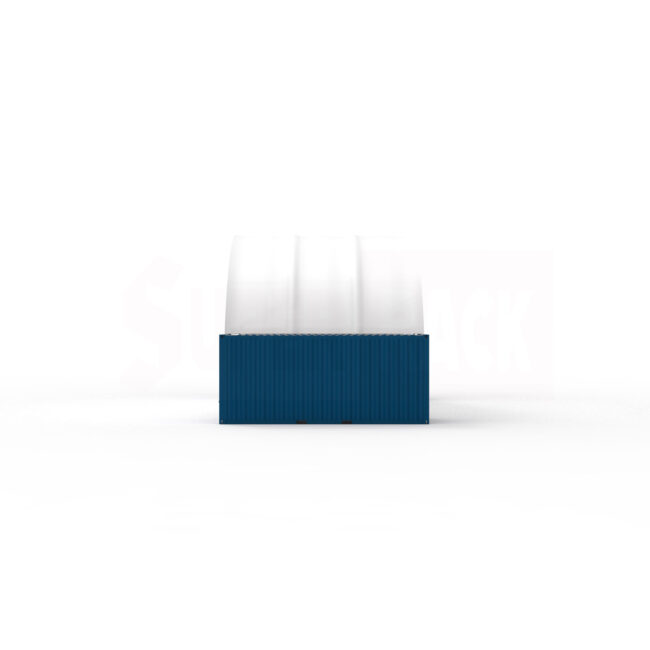

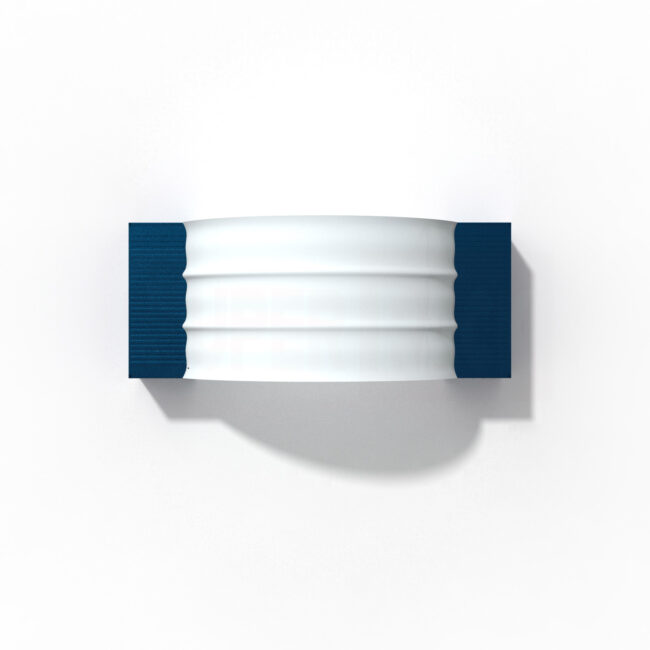

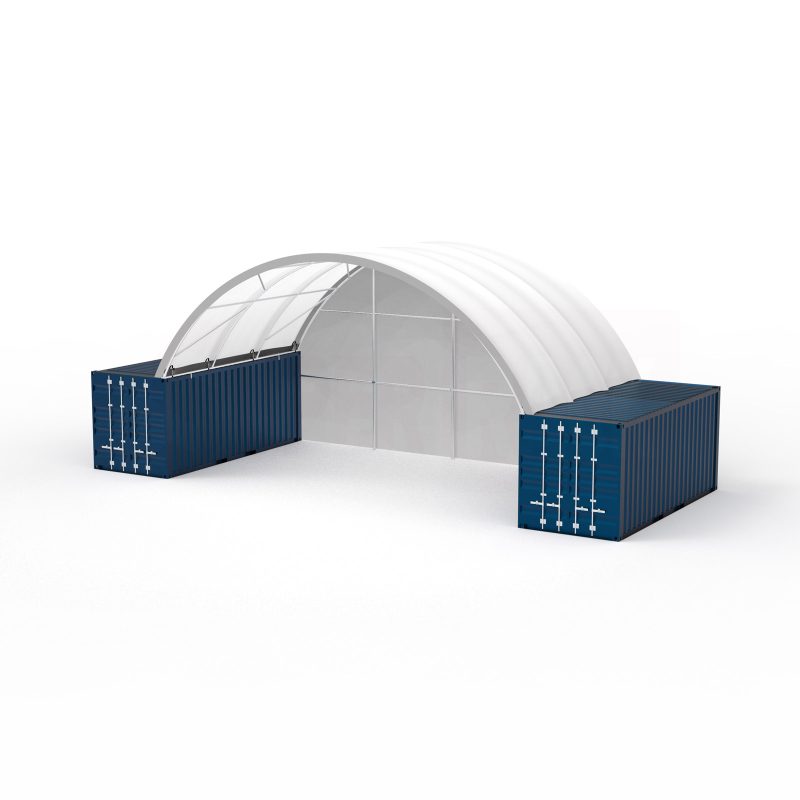

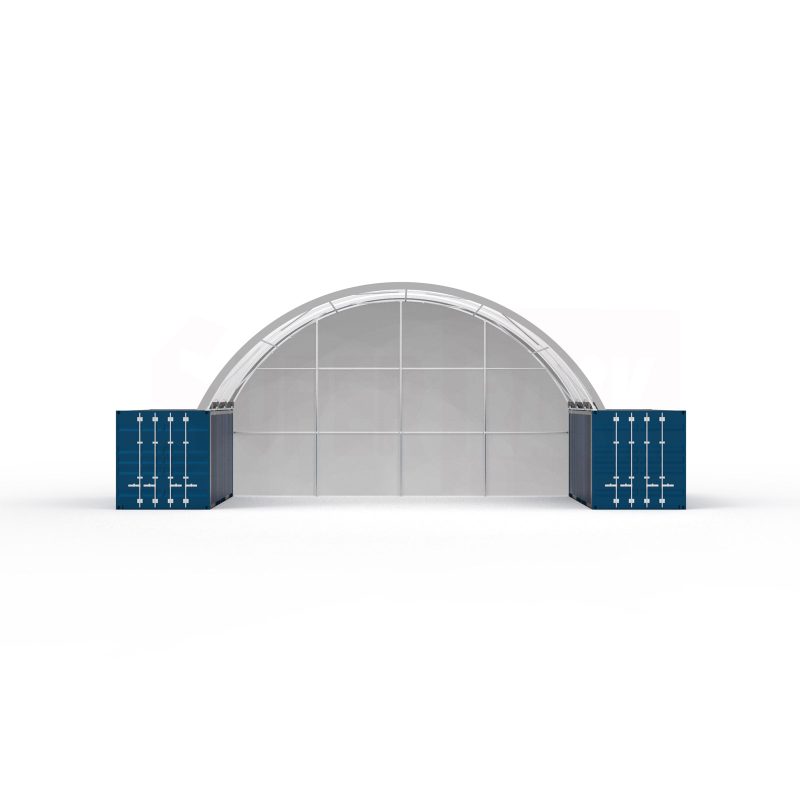

A 10 m x 6 m clear-span shelter that bolts across two shipping containers, turning the gap between them into 60 square metres of covered, well-ventilated space. The containers do the work of the footings, so there is no slab, no piering and no welding on site, and this model ships with an end wall to close one end against wind-driven rain. Because it sits on containers rather than a foundation, a dome is normally treated as a temporary structure – which is why most yards put one up without the approvals a permanent building needs. Council rules vary, so confirm yours before you order.
Frame and cover

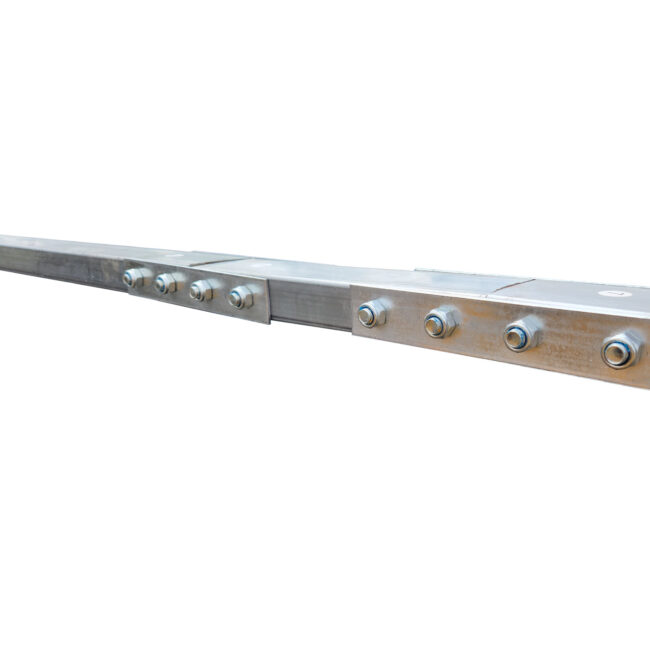

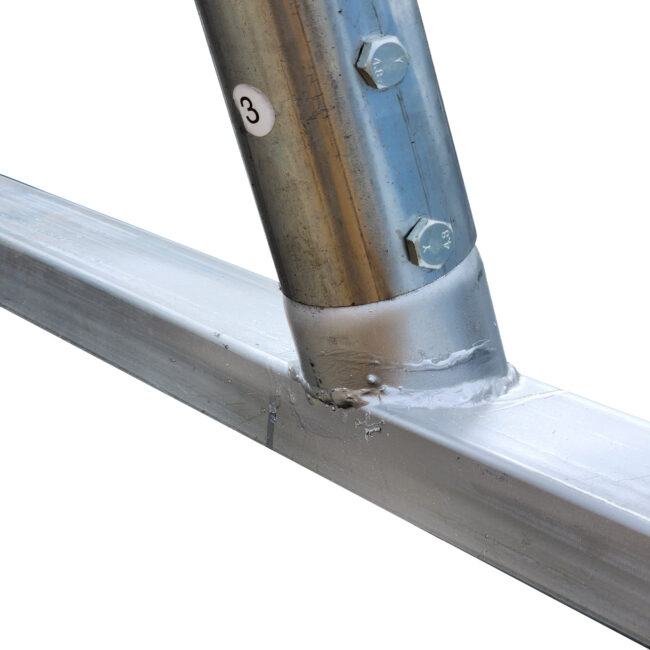

- Hot-dipped galvanised steel tube, 76 x 1.8 mm and 48 x 1.5 mm.

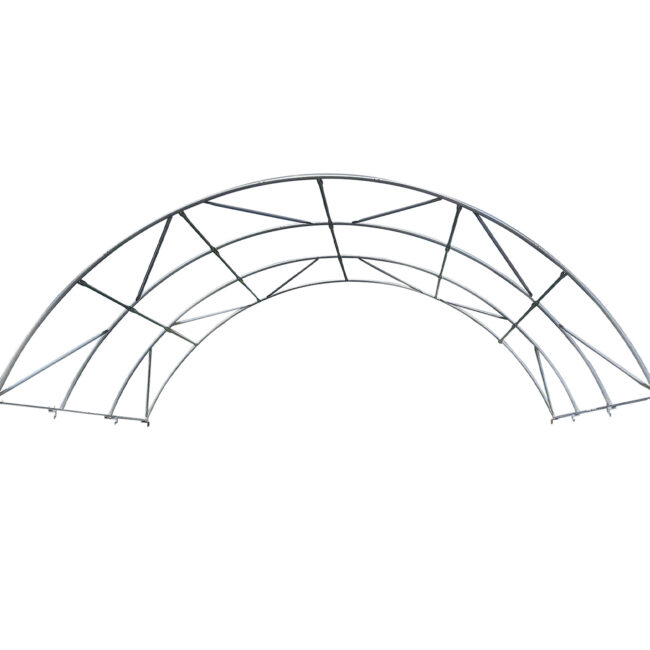

- Single-truss arches at 2 m centres – 4 arches across the 6 m length.
- 610 g/m² PVC commercial-grade fabric with an acrylic surface treatment: waterproof, UV-resistant and fire-resistant.
What you need on site

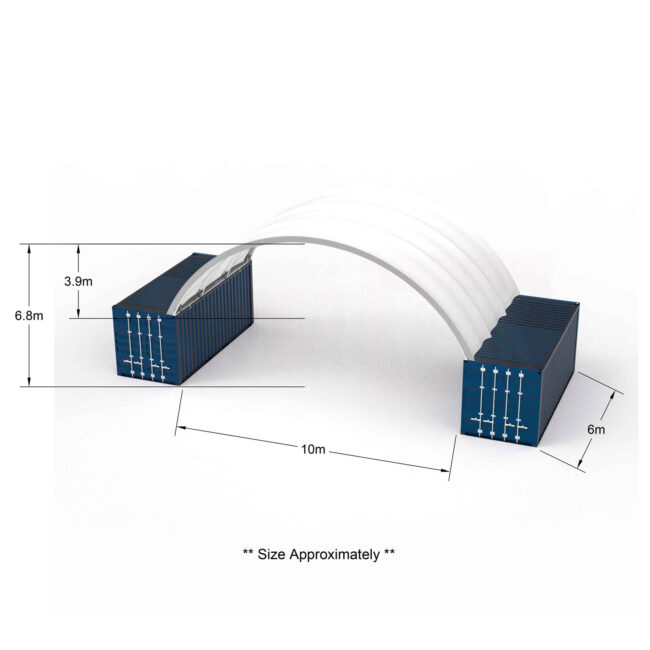

- Two shipping containers set 10 m apart, parallel and level. Overall height is 6.8 m measured from the ground with High Cube containers.
- Containers are not supplied. We can quote them with the shelter if you need a pair.

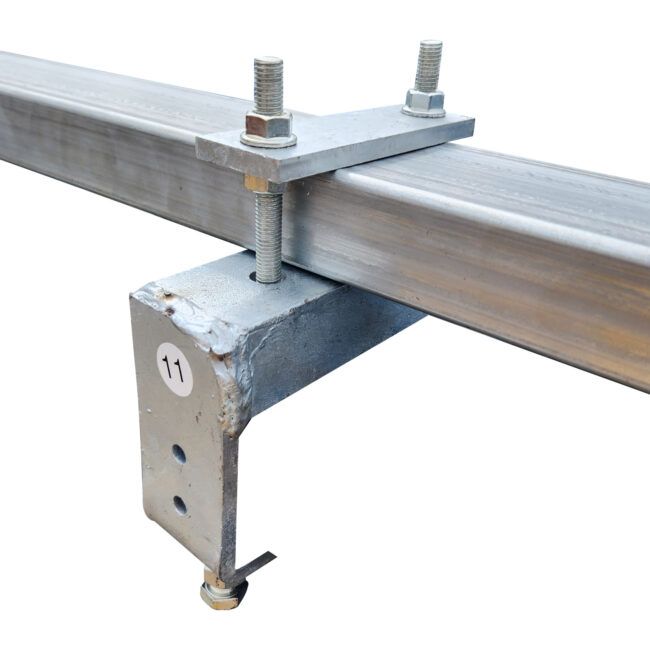

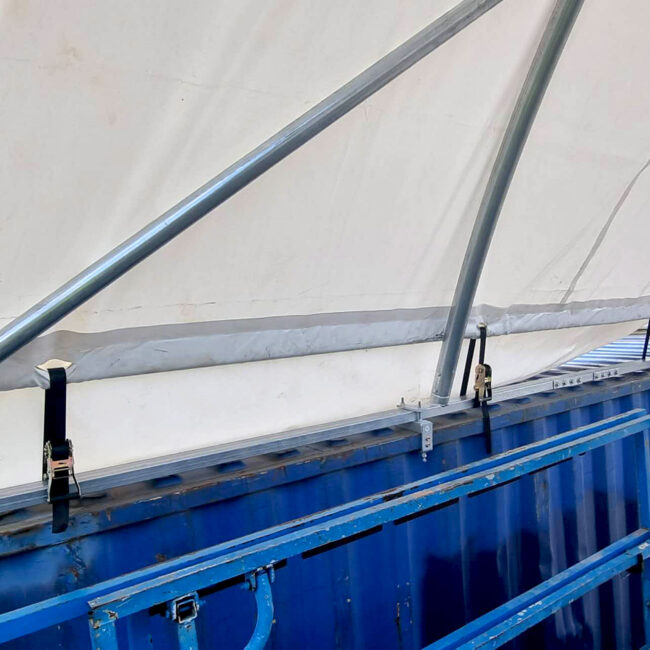

- No welding and no concrete. The kit bolts to the container rails and comes with a full installation manual.
Warranty
- Two years on the fabric.
- Five years on the structure, depreciating 15% per year across the five.
Brand new and held in stock. Call 1300 884 482 or send us the gap between your containers and we will confirm the right span and quote delivery.
